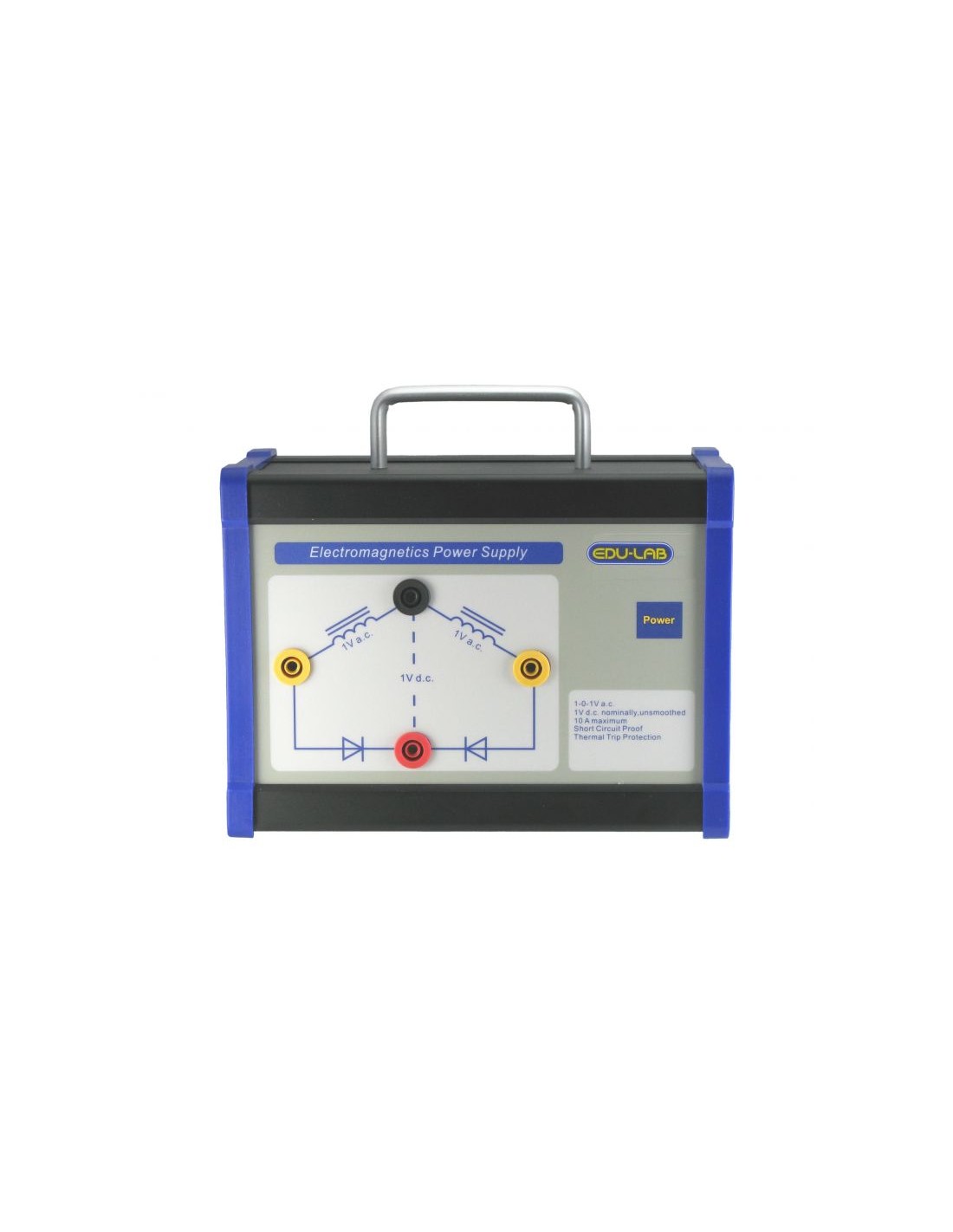

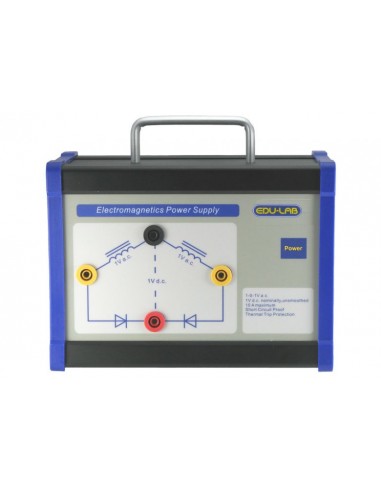

Electromagnetic Power Supply

€299.22
Vat included
S-605-008
Low Voltage, high current power supply for uses with Westminster electromagnetic kits, Fleming's apparatus, etc. 1-0-1V nominal a.c., allow students access to a.c. of 1V or 2V d.c ouput is furnished by rectification of 2V a.c (unsmoothed) Short-circuit current is 10A. Tolerates short circuit. Transformer is protected by thermal fuses and slow-blow fuse 40A Shottky barrier diode for robust and efficient rectification

Specifications:

  • Input voltage : 230V ±10% 50Hz
    Outputs: 1-0-1V a.c., 2V d.c nominal
    Dimensions: 208 x 155 x 115mm (W x H x D). Height including handle is 187mm.
S-605-008
2014-04-21
